Installing Sense Solar

Your incoming solar feed must connect directly into your main electrical panel, either through a breaker or a service-side tap. For further instructions on setting up Sense with your solar system, please consult the Sense Solar Installation Guide.

Breaker fed


Service-side tap

If your solar taps directly into your main service lines, it is important that you place your main current sensors in a matching fashion: either both above the taps or both below them. Failure to do so will result in solar interference on one line of your usage readings. Your installation should match up with either acceptable configuration below.

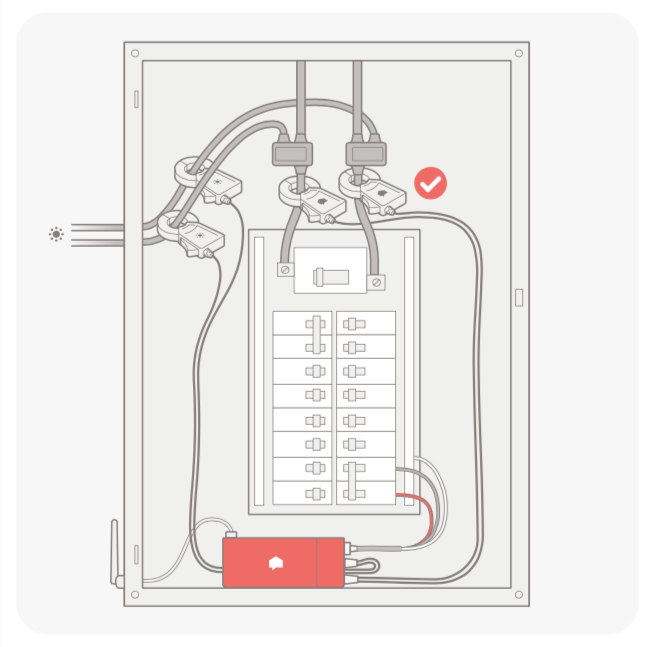

Acceptable configuration A:


Acceptable configuration B:

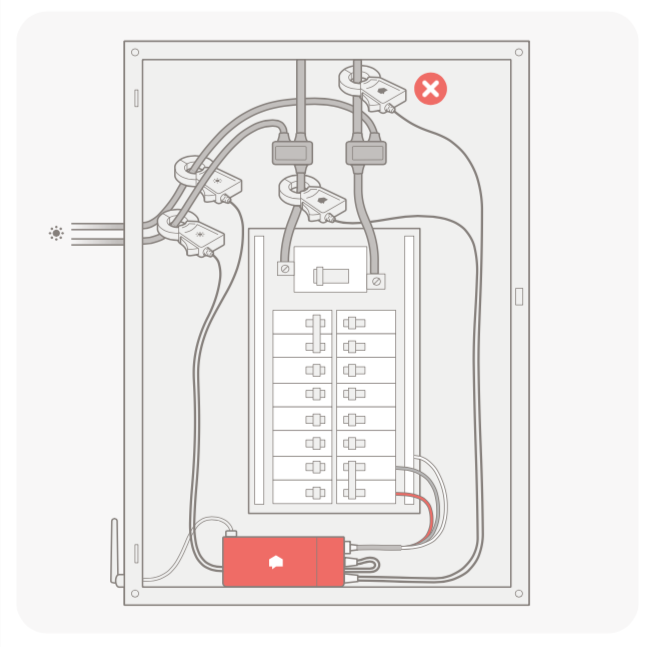

Incorrect configuration:


The Sense Solar Monitor is available for purchase here, or you can add solar sensors to your existing Sense Monitor for just $50. If you aren't sure if your particular setup will work, please contact our Support team.

Note: The Sense Home Energy Monitor should be installed by an electrician or qualified professional, and should be installed in compliance with all applicable local codes.


Si vous souhaitez obtenir une version en français du guide d’installation, il se trouve ici.
