Good Wi-Fi doesn’t just happen—it needs to be well designed. Investing a little time to optimize your setup will improve not only how well your Sense system works, but also how other devices in your home perform when streaming, gaming, or transferring data.
If you’re noticing poor signal strength near your Sense monitor, try the following options:
Option 1: Relocate Your Router
- The simplest first step is to move your router closer to your Sense system—-whether it’s installed in your electrical panel or embedded in a Sense-enabled smart meter.
- 📌 For panel-installed systems:
Make sure the Sense antenna is outside the electrical panel box. Then, adjust its position slightly—just like tuning a TV antenna—to improve reception.
Option 2: Update Your Router
- Router technology evolves quickly. If your router is more than 5 years old, it’s likely time for an upgrade. For smart homes with many connected devices, updating every 2–3 years is recommended.
Signs you may need a new router:
- Slow speeds
- Weak or inconsistent connection
- Frequent malfunctions
- Incompatibility with newer devices
If your router is provided by your Internet Service Provider (ISP), contact them for upgrade options.
Option 3: Install a Wi-Fi Extender or Booster

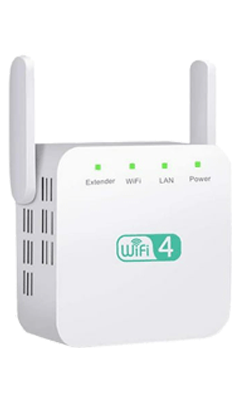

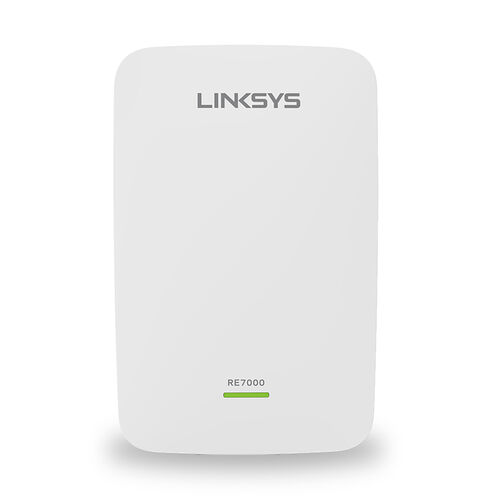

A Wi-Fi extender plugs into an outlet halfway between your router and your Sense system, amplifying your existing signal.
How it works:
- Press the WPS button on both your router and extender
- Sense connects through the extended signal
🔍 Keep in mind:
- Most extenders deliver only about 50% of your base router’s bandwidth
- Choose a well-reviewed model that’s compatible with your router
- Check with your ISP for compatibility or installation support
Option 4: Add or Modify Wireless Access Points (WAPs)
- If your home is large or has Wi-Fi dead zones, a single router or even an extender may not be enough. Adding additional Wireless Access Points (WAPs) helps ensure strong, reliable coverage throughout your space.
What access points do:
- Create mini “subnetworks” connected to your main router
- Help spread the load across your devices
- Offer flexible placement in areas far from your router
Tips for setting up Wireless Access Points (WAP):
- Program each WAP with your main network’s SSID and password
- Use a unique name for each AP if you want to distinguish them
- Make sure each WAP is set to a different Wi-Fi channel (1, 6, or 11 recommended)
- Connect Sense to the closest AP, and avoid letting it roam between APs
- Confirm the AP’s bandwidth performance at the location you plan to install
What’s Next?
A strong, stable signal between your router and Sense system is essential for accurate energy monitoring and real-time data. If you're still having trouble or getting error messages, check out these articles based on your situation:
During Initial Setup:
After Running a Connection Test:
- Connection Test: We’re Having Trouble Setting Up Wi-Fi
- Connection Test: Signal Strength Low
- Connection Test: No IP
- Connection Test: No Gateway
- Connection Test: Upload Low (may reflect low signal strength or high traffic)
- Connection Test: NTP Protocol Error
When Sense Goes Offline:
If these tips don’t resolve your issue, your Internet Service Provider may be the best next step—they can help evaluate signal strength and router configuration to make sure your network is optimized.
